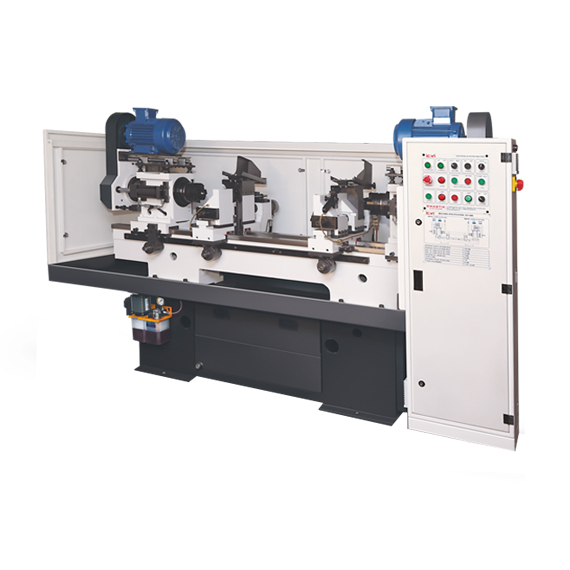

ICON Centering and facing machines are most suitable for centering, plunge facing & chamfering of the two ends simultaneously of the bar stock, such as camshafts, crankshafts, spiders, etc. ensuring perfect alignment of centers, accurate lengths and true end, these are available in Two models.

The combined centering and facing operation saves machining time, handling time and floor space. The machine has two Hydraulic operated self centering work holding vices with push button control. The cutting cycle is operated with push button on a fast approach, slow feed and rapid return basis.

Send Inquiry

Technical Specification

Model	ICF - 500	ICF - 1000
Maximum Length of Work Piece (Two Vices)	500 mm	1000 mm
Minimum Length of Work Piece	100 mm	100 mm
Maximum Dia Admitted in Two Vices	125 mm	125 mm
Minimum Dia Admitted in Two Vices	15 mm	15 mm
Maximum Dia Can be Faced ( STD, Tool Holder)	65 mm (Optional - 80 mm)	65 mm (Optional - 80 mm)
Spindle RPM	750 STD (350, 500, 1000 Optional)	750 STD (350, 500, 1000 Optional)
Spindle Motor LH / RH	3HP/2.2 KW (945 RPM)	3HP / 2.2 KW (945 RPM)
Maximum Stroke of Each Quill	50 mm	50 mm
Quill Feed System	2 Hydraulic cylinder	2 Hydraulic cylinder
Job Clamping System	Hydraulic Motor Driven Screw Clamp	Hydraulic Motor Driven Screw Clamp
Center Drill Size	BSSS3 to BSSS6 or as Per ISI STD	BSSS3 to BSSS6 or as Per ISI STD
Lubrication	Auto Centralized Lubrication System	Auto Centralized Lubrication System
Hydraulic Motor Power	4.5 HP / 3.3 KW (1440 RPM)	4.5 HP/ 3.3 KW (1440 RPM)
Coolant System	Through Spindle (RV 401170 Pump, 0.37 He 3Ph)	Through Spindle (RV 40 / 170 Pump, 0.37 en 3Ph)
Total Machine Volume with STD Equipments	Length 2000 X Breadth 1200 X Height 1600 mm	ength 2500 X Breadth 1200 X Height 1600 mm
Total Machine Weight	1760 Kg (1535 Kg Machine+225 Kg Hyd. System)	1880 Kg (1655 Kg Machine+225 Kg Hyd. System)
Power Requireent	11 HP/8.2 KW	11 HP/ 8.2 KW
Machine Colour	White and Grey	White and Grey

We Customize Machine As Per Customer requirement

Key Features

Rugged and predsion ground cast iron bed
Ground and scraped milling slides.
Spindle with taper roller bearings.
Hydraulic operated, hard crome plated quill type spindle.
Through spindle coolant.
Linear guide mounted spindle motors.
Self centering vice with Hardened and ground work holding vee blocks.
Hardened and ground tool holder provided with carbide cutter insert type tools.
All machine setting elements are at operator side.
Centralised auto lubrication system.
Complete PLC Panel with high quality wiring and component.
Special cover protection for machine slides and vice screw.
Machine with enclosure.
Operating and maintenance manual.
