Fully Automatic Keyway Milling Machine

ProductsFully Automatic Keyway Milling Machine

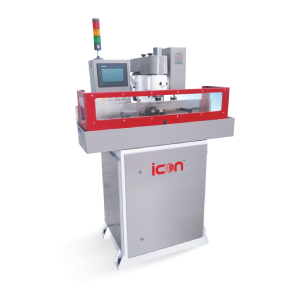

ICON Make Fully Automatic key way milling machine (Model : IFA 275) is PLC based machine. This machine controls Depth and Length of key way both by PLC.

This machine is specially designed for making multiple key ways and drilling operation on different diameter of job.

Send Inquiry

Technical Specification

Model	IFA-275
Spindle RPM	0-3700 RPM
Shaft Clamping Dia	12mm to 100 mm
Length Of key way	5mm to 275mm
Key way size	3mm to 16 mm
Max Drilling Capacity	8 mm x 40 mm depth
Standard Collet	ER-25
Power Required	2.5 HP / 1.86 KW

We Customize Machine As Per Customer requirement

Key Features

Table travel mechanism with LM guide ways and Ground Ball Screw.
Table and Spindle both feed travel by servo motor and controlled by plc.
Color HMI for Program and Data entry.
Supports Multiple key ways and drilling operation.
At a single time either key way or drilling operation can possible.
Only single tool can clamp at a one time.
Number of program can be saved as per part name or number.
Automatic Motorized lubrication system.
Self centering vice provided with machine.
Heavy construction of machine base and body.

0 bananas

Application Industries

Gear Box Manufacturer
Electric Motors Manufacturer
Pump Manufacturer
Pharmaceutical Machine Manufacturer
Packaging Machine Manufacturer
Rotary Pump, Gear Pump, Pressure gauge, Manufacturer
Textile machine manufacturer
Other Machine Tools and Plastic Process Machine Manufacturer
