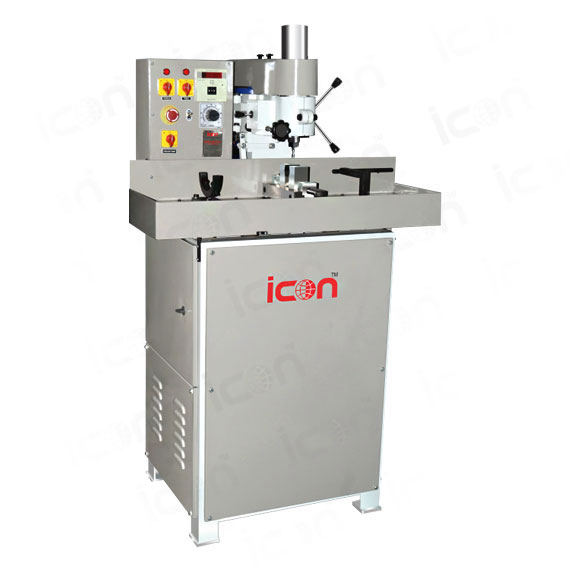

ProductsSemi-automatic Keyway Milling Machine

icon make an automatic key-way milling machine is specially designed for making key-ways on shaft. The shaft is clamped with self-centering vice. The feed is automatic with automatic depth of cut 0.1 mm per stroke. At desired final depth machine gets automatically stopped with instant sound of buzzer. icon key-way milling machine is useful to achieve P-9 tolerances for shaft keyways and faster in operation than other conventional milling machines.

This key-way machine is faster in operation than other lathe and conventional milling machines. The key-way machine gives precise keyways with high production at low cost. This key-way machine is useful for applications in achieving tolerances for shaft keyways. The key-way machine is suitable for applications in electric motor manufacturing companies; reduction gearbox manufacturing companies; pharmaceutical die punch manufacturing companies; other machinery manufacturing companies; and almost all machine tools industry. The key-way machine is available with different technical specifications.

Technical Specification

ModelI-150 I-200
Spindle RPM1800 RPM0 - 2200 RPM
Shaft Clamping Dia12 mm to 70 mm12 mm to 100 mm
Length of Key-Way5 mm to 150 mm5 mm to 200 mm
Key-Way Size3 mm to 13 mm3 mm to 16 mm
Standard ColletER - 20ER - 25
Power Required1 HP / 0.75 KW1.5 HP / 1.12 KW

We Customize Machine As Per Customer requirement

Key Features

  • High accuracy, P9 tolerance can be achieved.
  • Reliable, Economical & Durable
  • Accurate depth control by means of its accurate mechanism
  • Automatic operation to get 100% desired output.
  • Easy to operate, can be handled by semi skilled operator
  • More tooling life
  • No additional accessories required.
  • All components made to close tolerance.
  • Rugged construction, long service life.
0 bananas

Application Industries

  • Gear Box Manufacturer
  • Electric Motors Manufacturer
  • Pump Manufacturer
  • Pharmaceutical Machine Manufacturer
  • Packaging Machine Manufacturer
  • Rotary Pump, Gear Pump, Pressure gauge, Manufacturer
  • Textile machine manufacturer
  • Other Machine Tools and Plastic Process Machine Manufacturer
