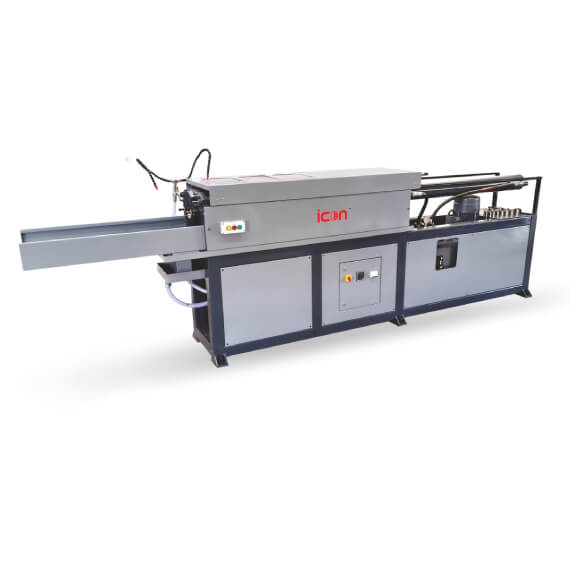

ProductsHydraulic Pull Type Horizontal Broaching Machine

ICON Make broaching machines are made of robust fabricated stress relieved structure with hard chrome plated guide ways, and precise components. The hydraulic power pack unit consists of branded electrical motor and elements like Yuken, Rexroth valves etc.



Machine Application

  • Internal keyway
  • Internal straight spline
  • Internal hexagon
  • Internal square
Send Inquiry

Technical Specification

ModelIB-1050IB-1250-H5IB-1250-H6-24
Stroke Length 1050 mm1250 mm1250 mm
Power Pack5 HP5 HP7.5 HP
Ton Capacity5 TON5 TON 11 TON
Max Job Clamping Dia400 mm400 mm600 mm
Job Plate250 mm250 mm250 mm

We customize machine as per client Requirements.
